Blade Fusion 550 Quick Build Electric RC Helicopter Kit w/Motor & Blades-BLH4975

Blade Fusion 550 Quick Build Electric RC Helicopter Kit w/Motor & Blades-BLH4975

BLH4975
Save $120.00 USD
$479.99 USD
$599.99 USD
Quantity
Only 5 left
Volume Pricing
Quantity
Price
1+
$479.99 USD each
Shipping Policy
Return Policy
90-Day Warranty Policy

Fusion 550 Quick Build Electric Helicopter Kit

Overview
Ideal for serious pilots, the Blade Fusion 550 Quick Build Electric Helicopter bridges performance and convenience with a carbon-fiber/aluminum airframe, 550mm carbon main blades, and 6S-ready 4320 motor—Delivering 3D aerobatics precision and 50% faster assembly for RC helicopters that dominate sport to extreme flight!

Features
Quick Build Factory Assembly
   Major sub-assemblies pre-finished, enabling RTF in significantly less time than standard kits (EPO-free construction implied).

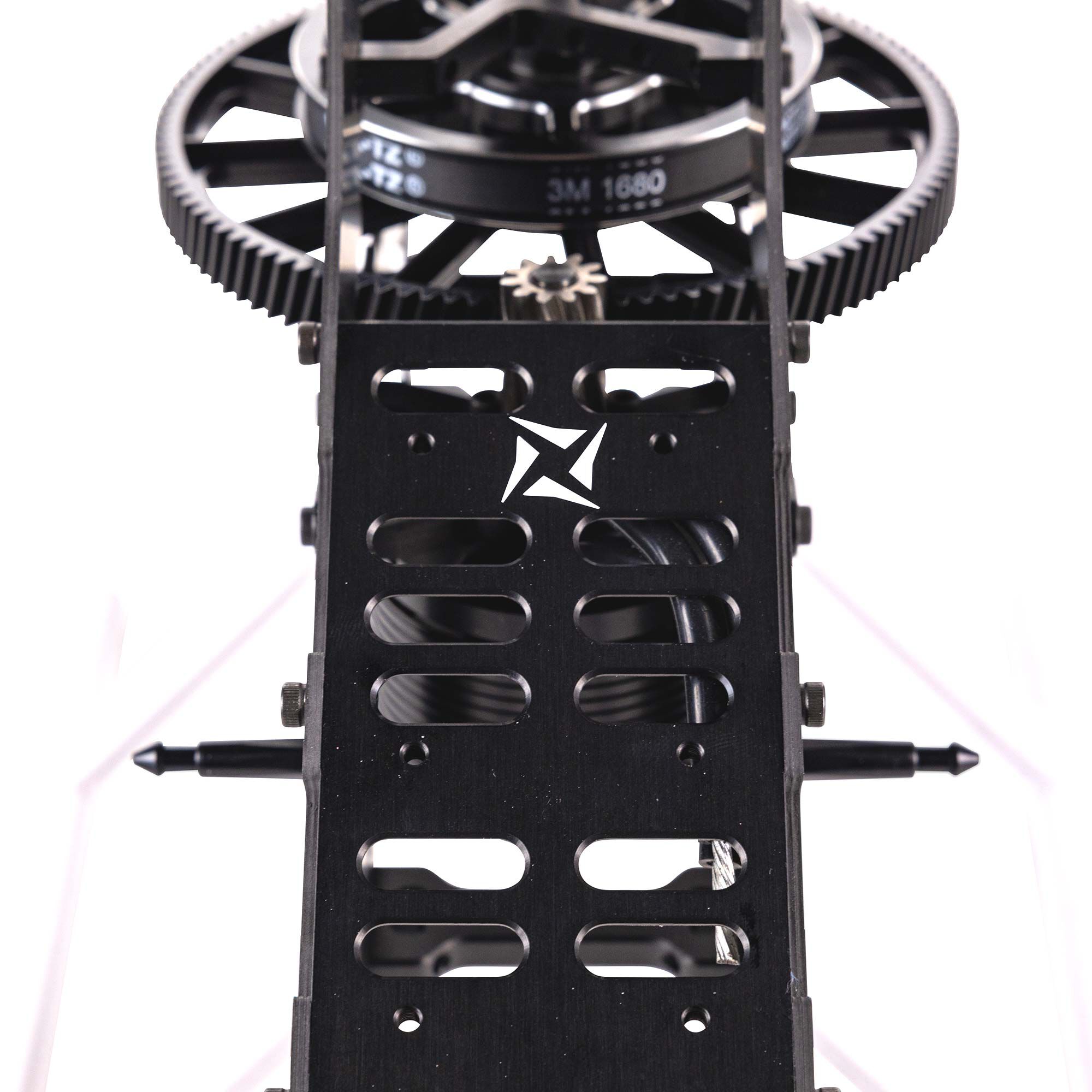

Premium Carbon/Aluminum Airframe
   Lightweight yet rigid structure using carbon fiber and CNC-machined aluminum components for precise flight dynamics and durability.

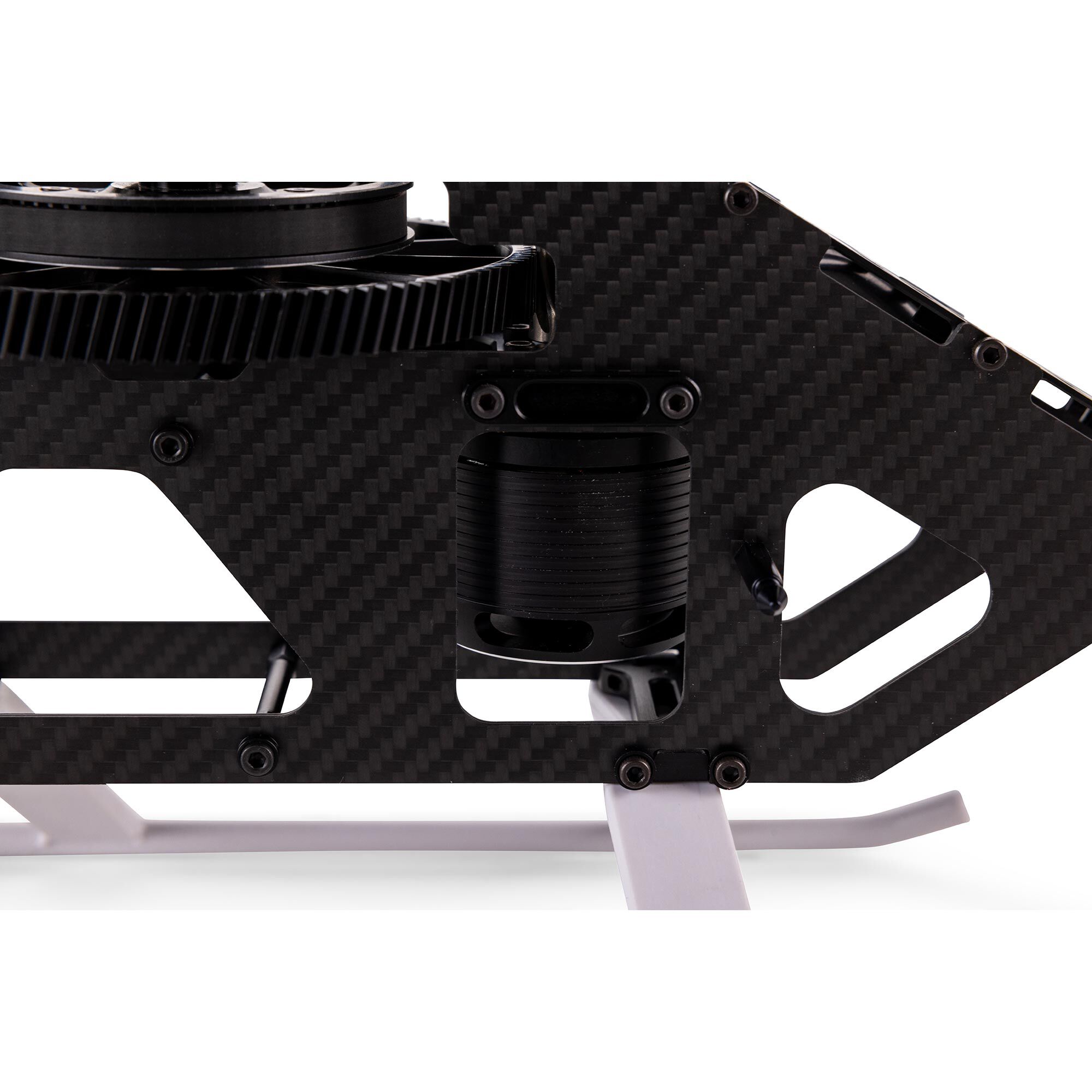

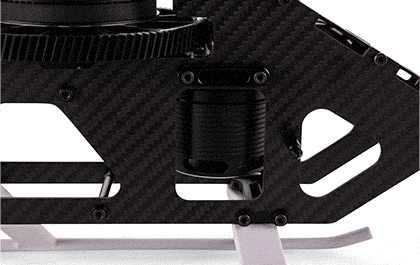

High-Torque 1180Kv Outrunner Motor
   Supplied 4320-1180Kv brushless motor optimized for 6S power, delivering exceptional torque and performance.
Oversized 25mm Tail Boom
   Large-diameter boom eliminates traditional boom supports, enhancing rigidity, simplifying structure, and improving aesthetics.

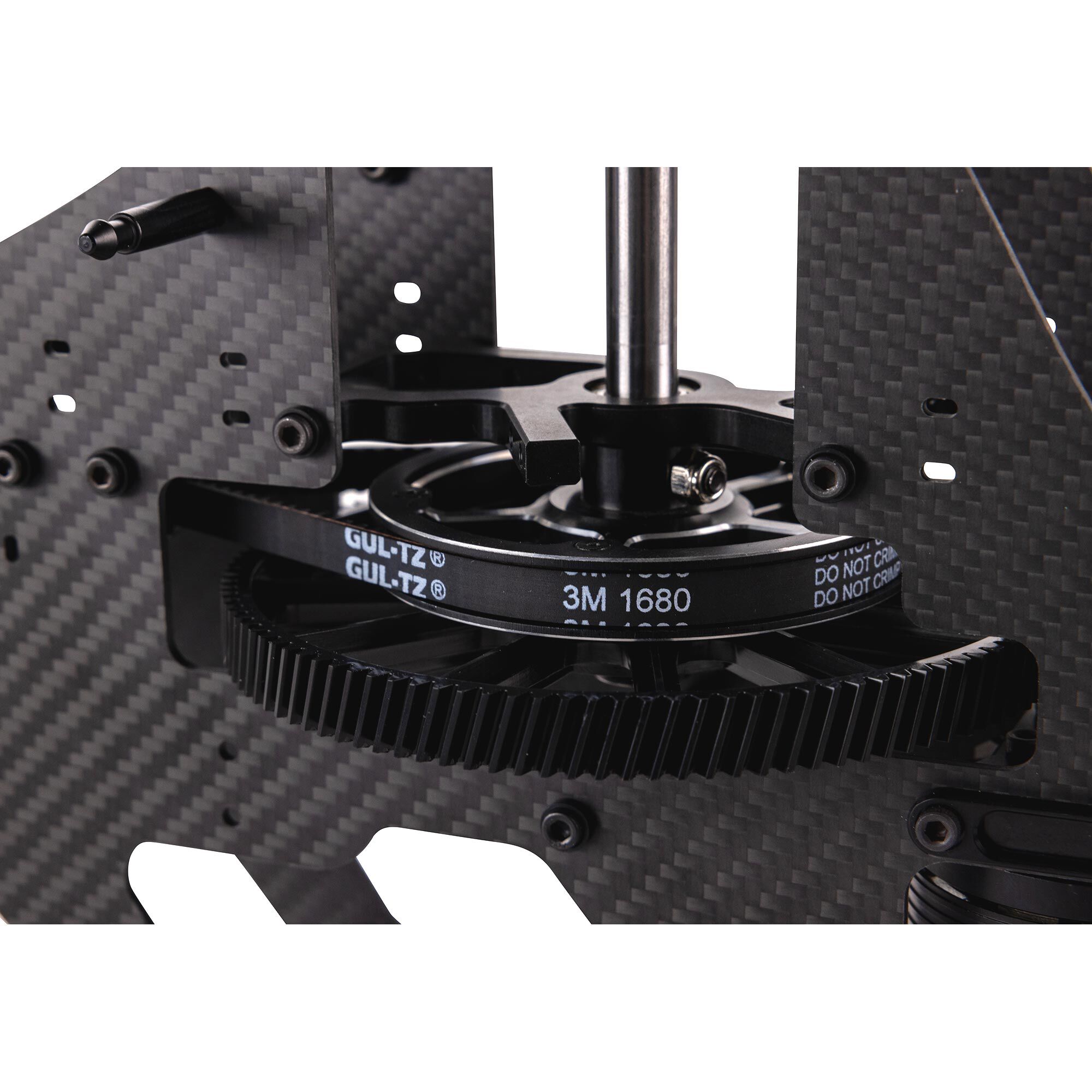

Efficient Helical Main Gear System
   Steel pinion meshed with helical main gear ensures quiet operation, smooth power transfer, and reduced gear wear.

• 550mm Carbon Main & 95mm Tail Blades
   High-quality carbon fiber main and tail rotor blades included, providing optimal lift, efficiency, and responsive control.

Specification

Length: 42.52" (1080mm) Weight: 6.72Lb (3050g) with Recommended Battery
Height: 12.59" (320mm) Width: 7.4" (188mm)
Tail Rotor Blade Length: 3.74" (95mm) Tail Rotor Diameter: 9.84" (250mm)
Main Rotor Blade Length: 21.65" (550mm) Main Rotor Diameter: 49.01" (1245mm)
Motor Size: 4320-1180Kv 10 Pole Swashplate Type: 120 Degree CCPM
Channels: 6-CH Pinion: 12T
Canopy/Body Material: Fiberglass Tail Blade Material: Carbon Fiber

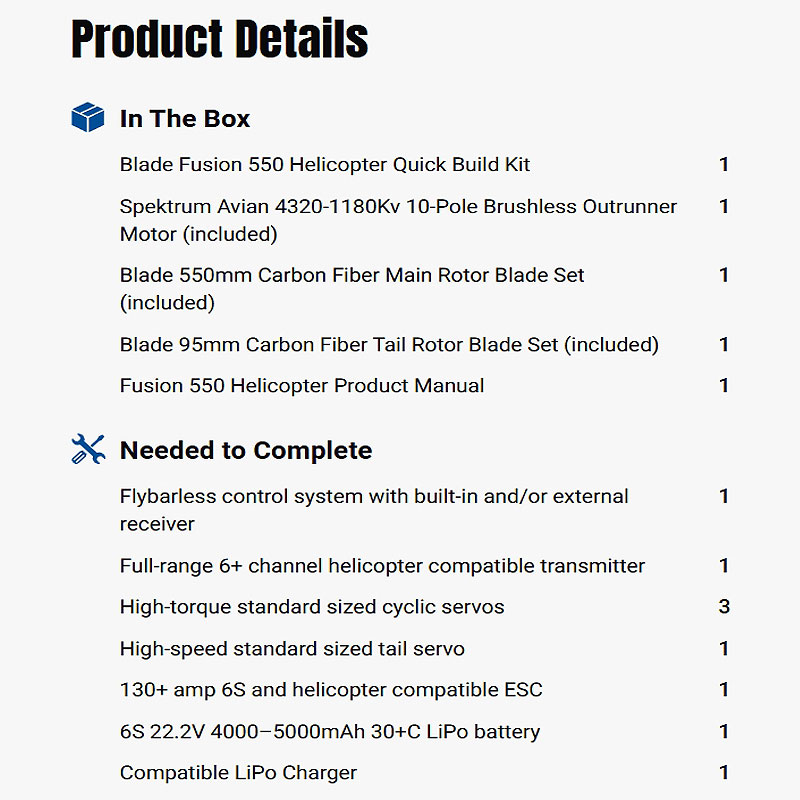

In The Box
(1)Blade Fusion 550 Helicopter Quick Build Kit
(1)Spektrum Avian 4320-1180Kv 10-Pole Brushless Outrunner Motor (Included)
(1)Blade 550mm Carbon Fiber Main Rotor Blade Set (Included)

(1)Blade 95mm Carbon Fiber Tail Rotor Blade Set  (Included)
(1)Product Manual

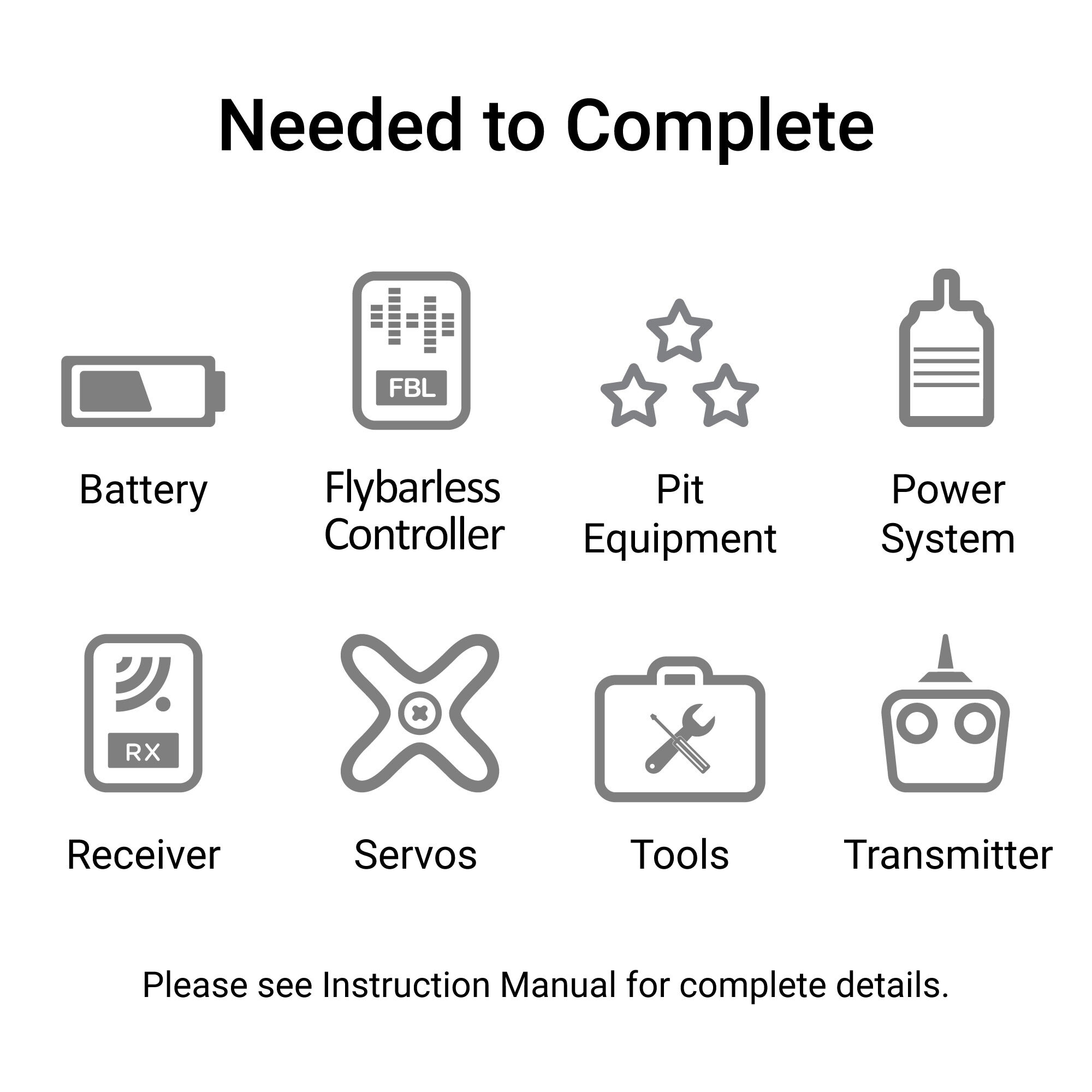

Needed to Complete
(1)Flybarless Control System With Built-In And/Or External Receiver
(1)Full-Range 6+ Channel Helicopter Compatible Transmitter
(3)High-Torque Standard Sized Cyclic Servos
(1)High-Speed Standard Sized Tail Servo
(1)130+ Amp 6S And Helicopter Compatible ESC
(1)6S 22.2V 4000–5000mAh 30+C LiPo Battery
(1)Compatible LiPo Charger

Features

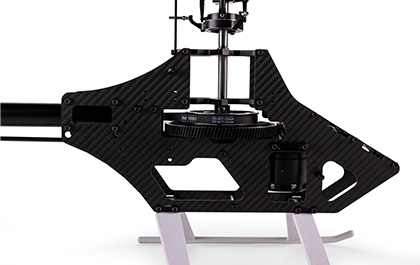

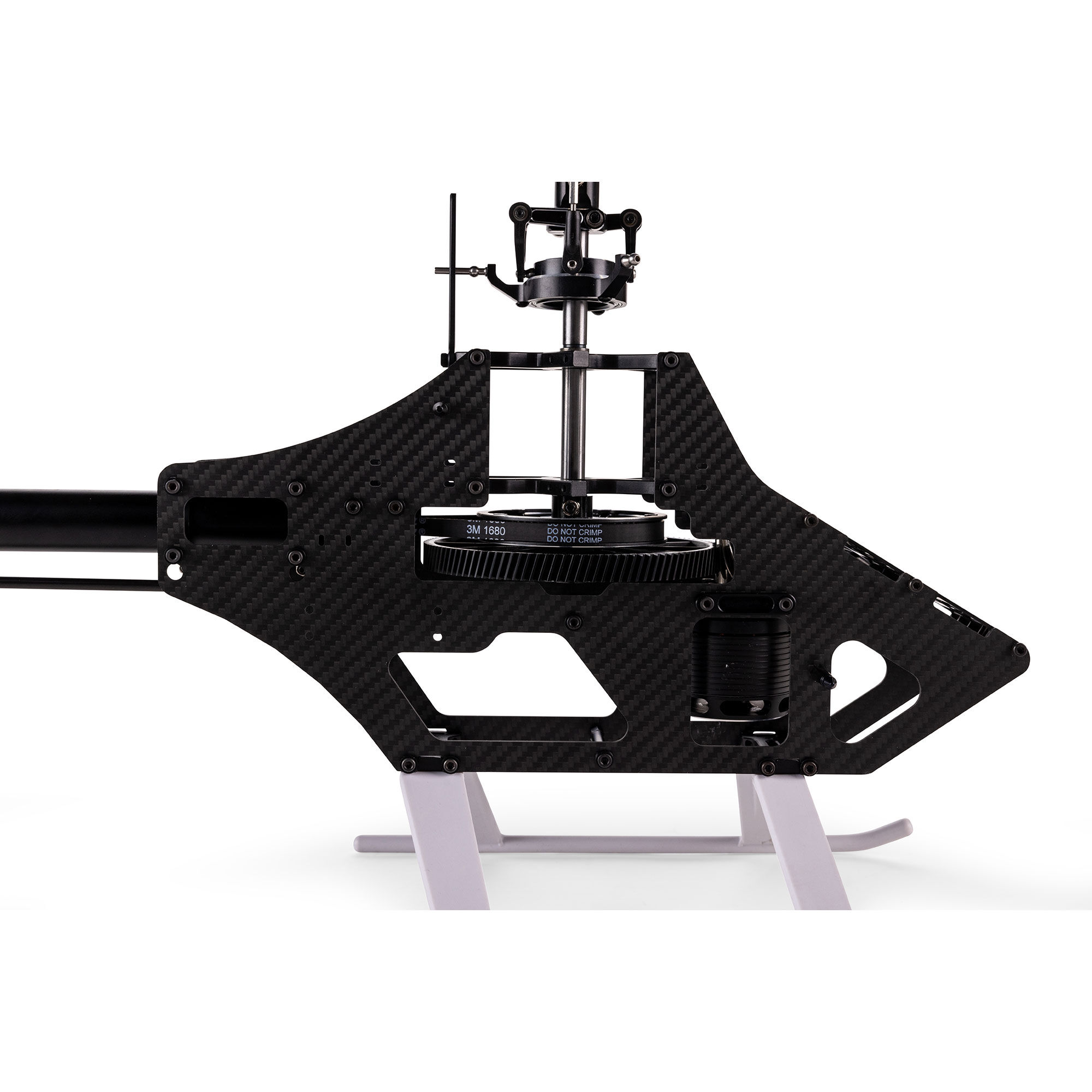

Frame Features
All-metal and 2mm thick carbon fiber construction
Aluminum battery tray with two oversized battery straps
Aluminum bearing and servo mounting blocks with Optimized Servo Geometry

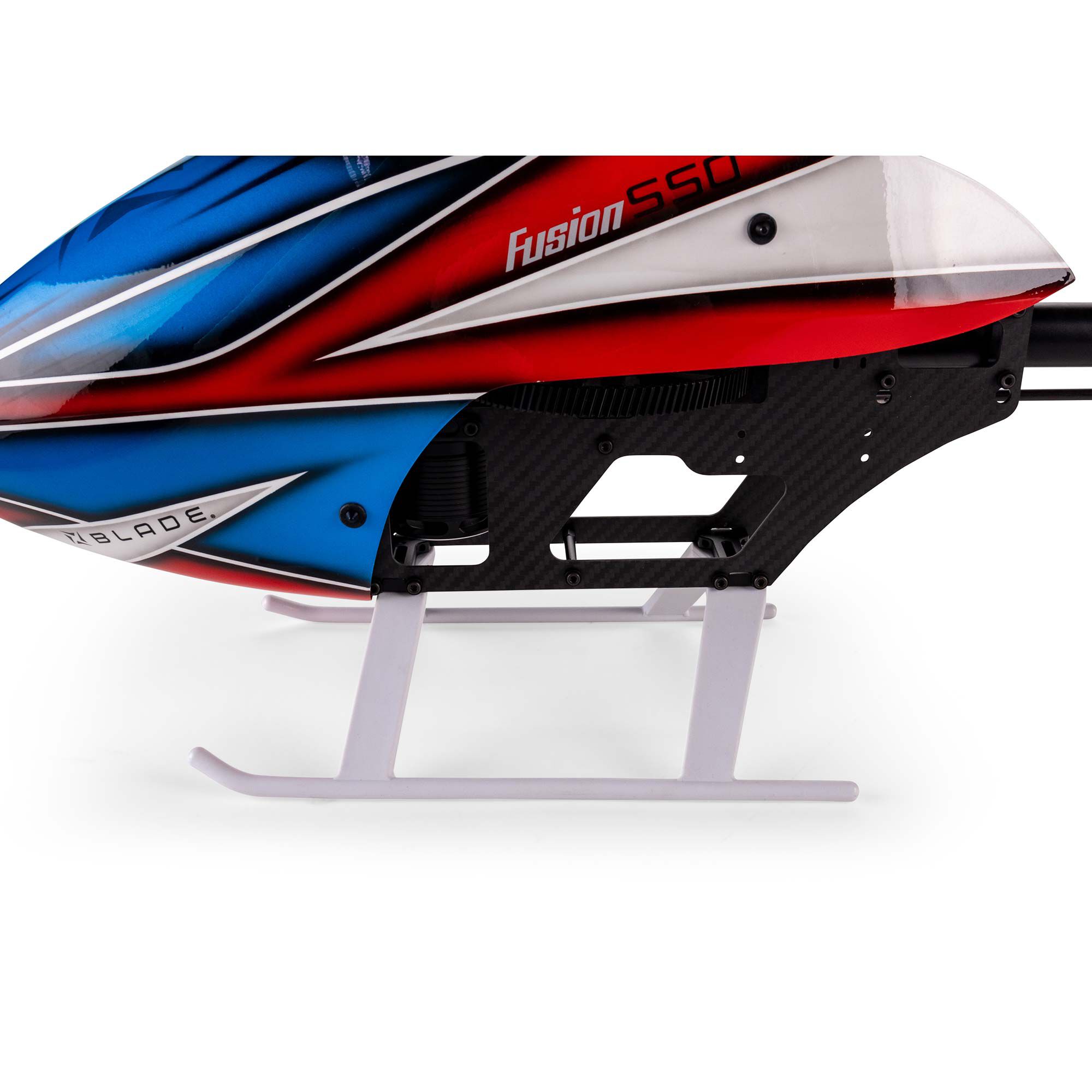

White molded landing gear plus a painted fiberglass canopy for excellent visibility

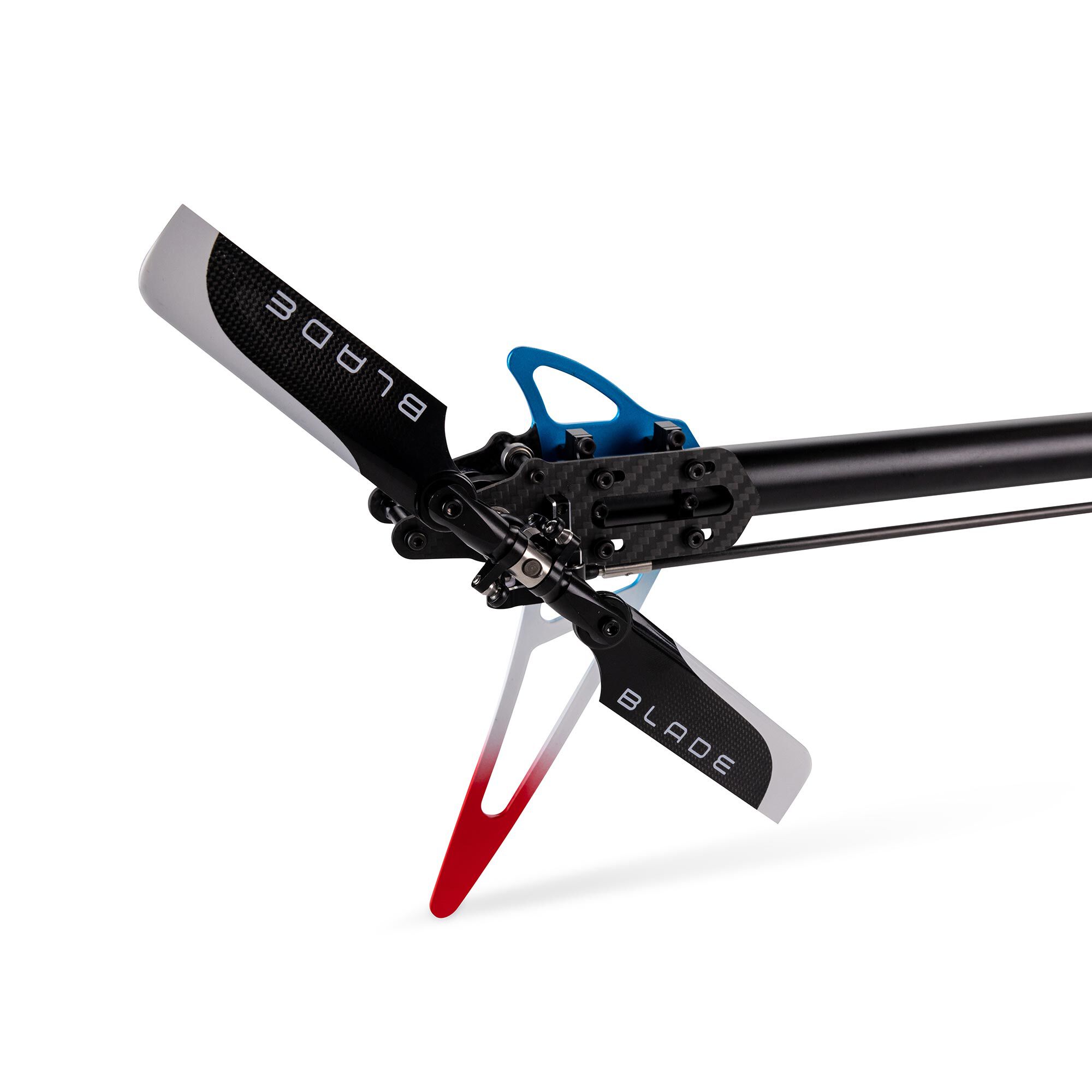

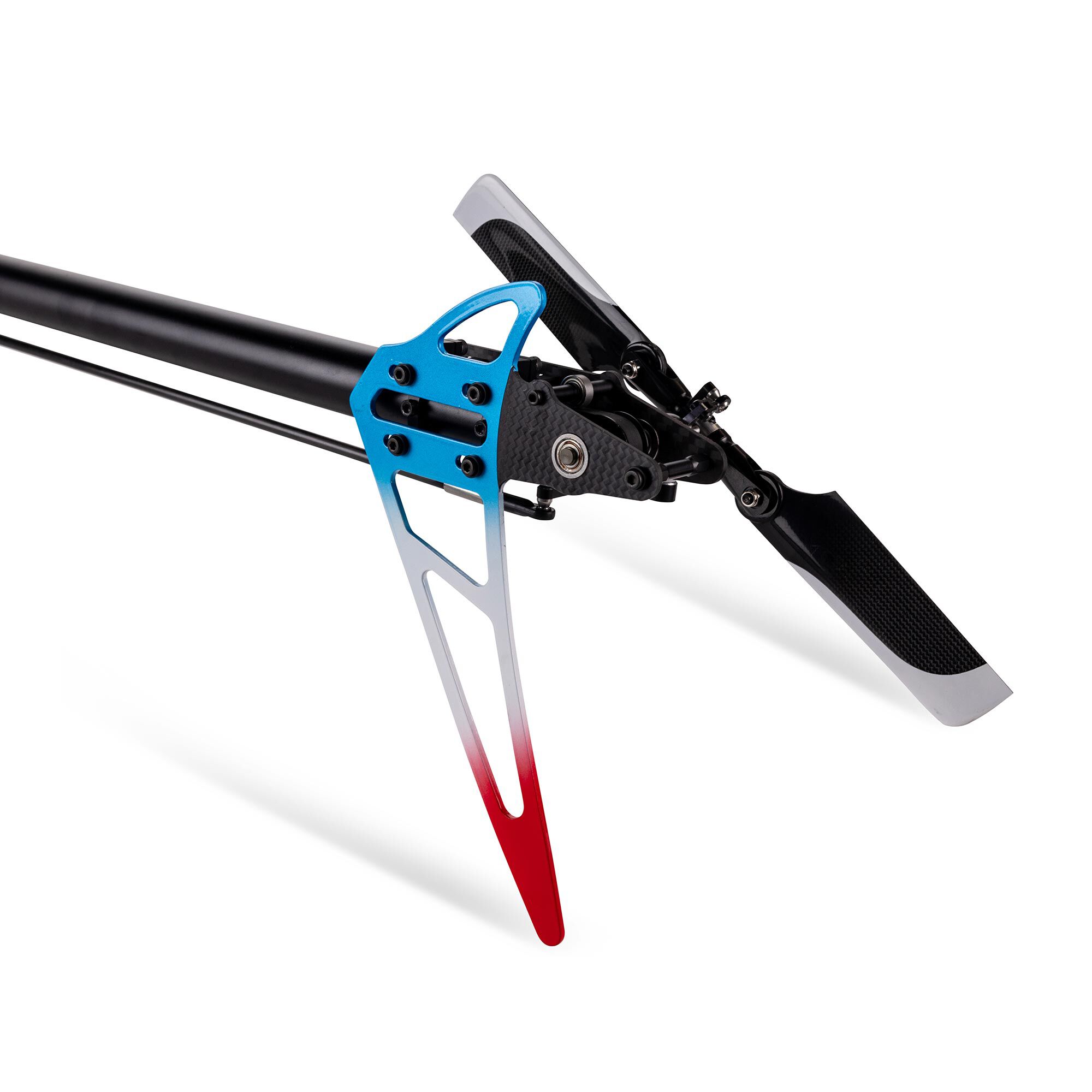

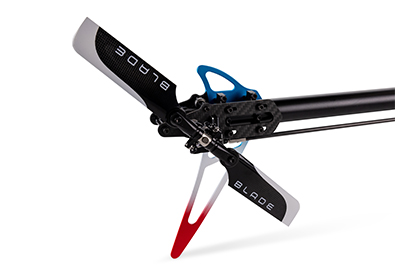

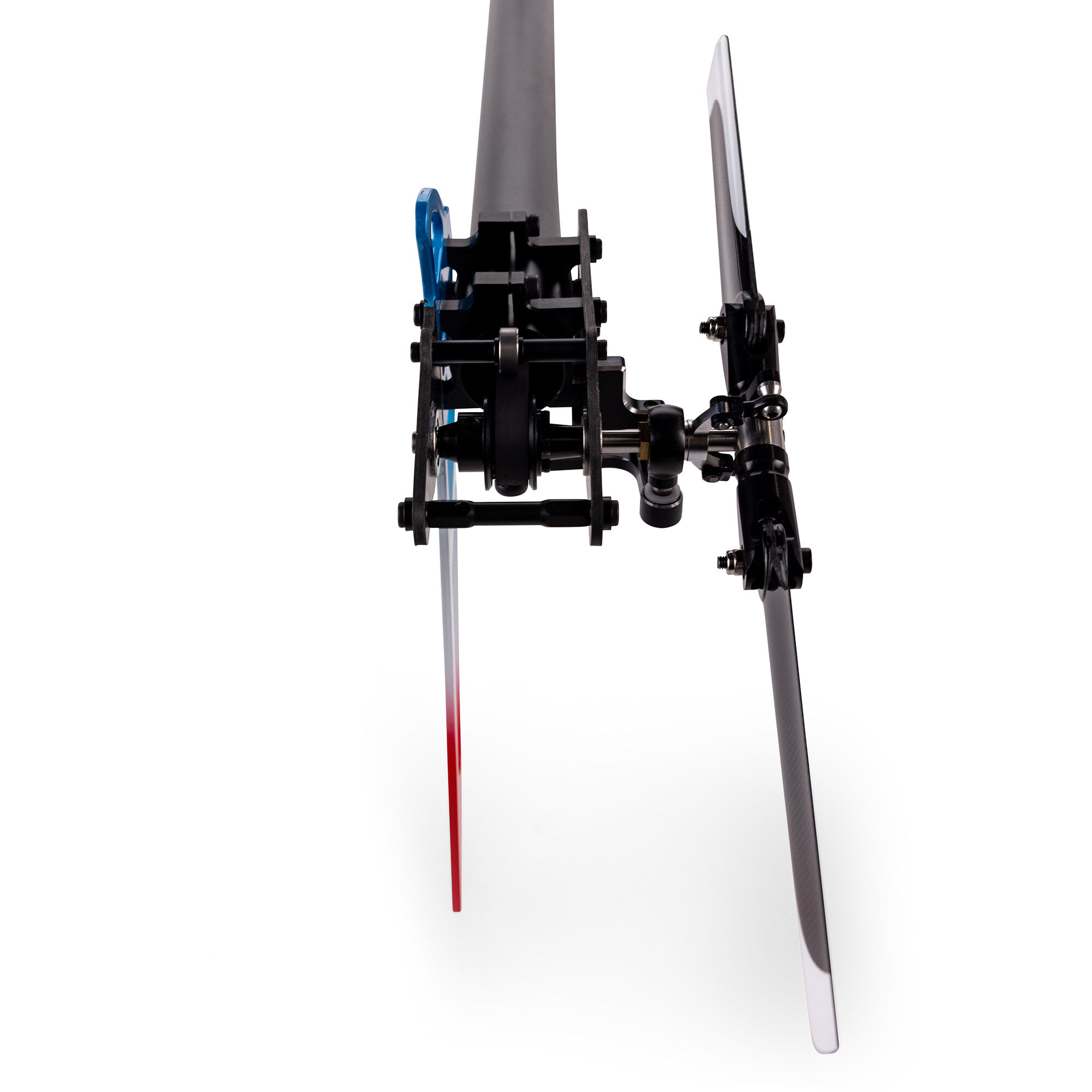

Tail Features
Oversized 25mm diameter tail boom eliminates the need for boom supports
2.5mm thick carbon fiber tail box and painted vertical fin for improved visibility
6mm wide drive belt with adjustable tension drives a large aluminum pulley
5mm high-strength steel tail shaft with metal bell crank, hub, and grips
5mm carbon fiber tail pushrod with ball links for precise control
Hidden tail servo for added protection and a sleek look
Includes 95mm carbon fiber tail rotor blades
Mechanics Features
Includes a 4320-1180Kv outrunner motor compatible with 6S batteries
Efficient helical main gear paired with a steel pinion to reduce noise

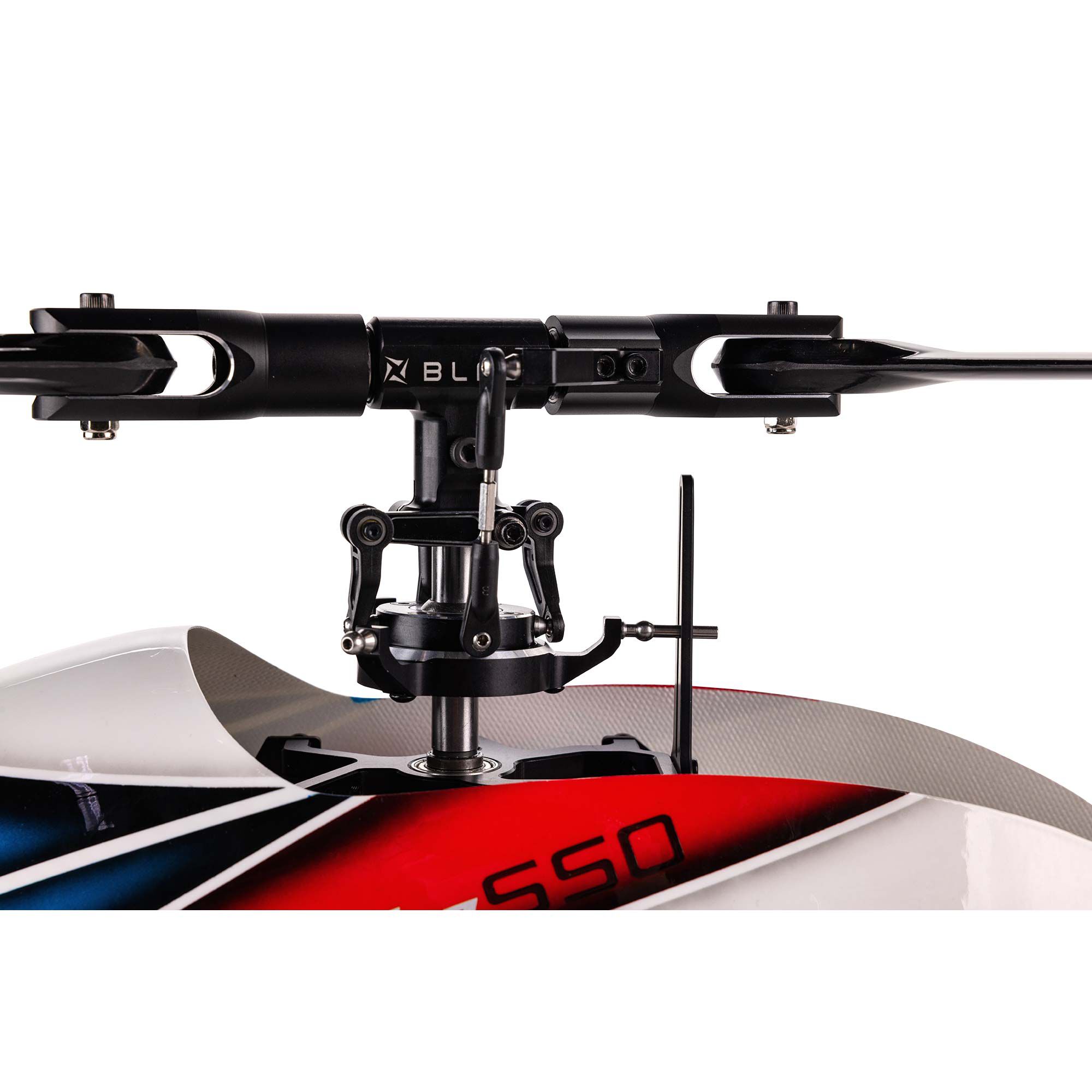

Black anodized aluminum swashplate and other components
High-strength steel 10mm main shaft and 8mm spindle
Aluminum blade grips with zero pitch indicator marks
Includes 550mm carbon fiber main rotor blades
Skill Level 3 – Experience Required
Skill Level 3 aircraft, like this one, are suitable for RC pilots who already have some experience with and the skills to assemble, set up and fly similar class models. And although this is one of the easiest-to-assemble helicopter kits, which makes it a perfect first-ever kit-built model for many pilots, you should have the experience and skills necessary to successfully set up and fly other helicopter models like the Blade 330 and Fusion 360 before attempting to fly the Fusion 550.
Frame Features
All-metal and 2mm thick carbon fiber construction
Aluminum battery tray with two oversized battery straps
Aluminum bearing and servo mounting blocks with Optimized Servo Geometry
White molded landing gear plus a painted fiberglass canopy for excellent visibility
Tail Features
Oversized 25mm diameter tail boom eliminates the need for boom supports
2.5mm thick carbon fiber tail box and painted vertical fin for improved visibility
6mm wide drive belt with adjustable tension drives a large aluminum pulley
5mm high-strength steel tail shaft with metal bell crank, hub, and grips
5mm carbon fiber tail pushrod with ball links for precise control
Hidden tail servo for added protection and a sleek look
Includes 95mm carbon fiber tail rotor blades
Mechanics Features
Includes a 4320-1180Kv outrunner motor compatible with 6S batteries
Efficient helical main gear paired with a steel pinion to reduce noise
Black anodized aluminum swashplate and other components
High-strength steel 10mm main shaft and 8mm spindle
Aluminum blade grips with zero pitch indicator marks
Includes 550mm carbon fiber main rotor blades
Skill Level 3 – Experience Required
Skill Level 3 aircraft, like this one, are suitable for RC pilots who already have some experience with and the skills to assemble, set up and fly similar class models. And although this is one of the easiest-to-assemble helicopter kits, which makes it a perfect first-ever kit-built model for many pilots, you should have the experience and skills necessary to successfully set up and fly other helicopter models like the Blade 330 and Fusion 360 before attempting to fly the Fusion 550.
1 / 4

Videos

  • Blade Fusion 550 RC Helicopters Introduction

Manuals and Support
